Lead Edge Flexo Printer Slotter Die Cutter Machine | High Speed Corrugated Carton Making Line

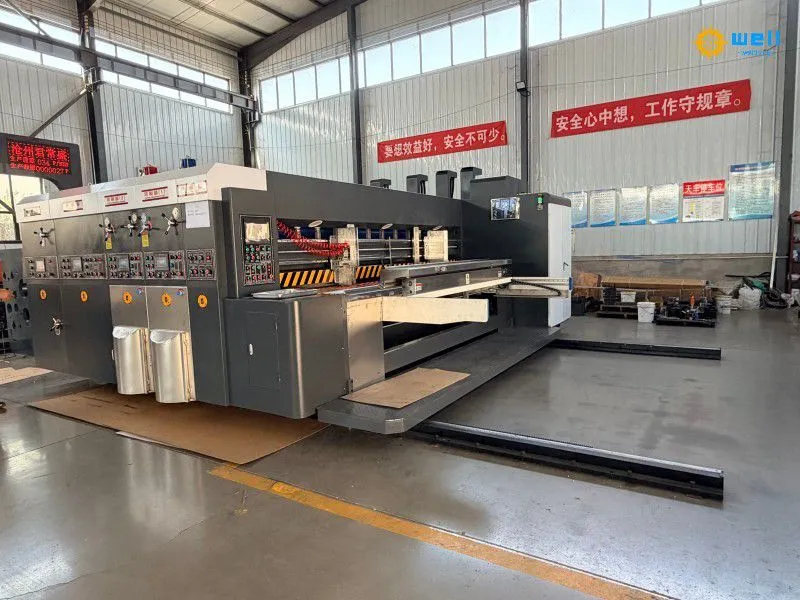

For corrugated packaging manufacturers chasing higher throughput, stable printing registration and less production waste, upgrading to a modern lead edge printer slotter die cutter machine is one of the most impactful investments you can make. This integrated inline converting machine combines vacuum lead edge feeding, water-based flexo printing, creasing, slotting, trimming and rotary die cutting in one continuous production cycle. It is engineered to replace outdated chain feed printer slotter die cutters, solving long-standing pain points such as sheet skew, inaccurate color registration, frequent jamming and heavy material loss, especially when processing warped, thin or irregular corrugated boards.

The heart of this machine lies in its advanced vacuum lead edge feeding system. Unlike traditional chain feeding that grabs cardboard edges and easily causes shifting, the lead edge feeder uses controllable vacuum suction to hold the front edge of corrugated sheets. It precisely positions each board before entering the printing section. This design greatly reduces feeding errors, even for 3-ply, 5-ply and 7-ply corrugated sheets with bending, curling or uneven thickness. Operators can adjust air suction strength according to board thickness and hardness. Sheets are delivered smoothly at consistent speed, eliminating misregistration that leads to rejected cartons. Stable feeding directly cuts waste rate and improves overall equipment efficiency, which brings obvious profit growth for carton plants with high-volume orders.

Printing performance is another highlight of our lead edge printer slotter die cutter. The machine supports customizable 1 to 6 color flexo printing units, equipped with high-quality ceramic anilox rollers. Ceramic anilox rollers offer longer service life and uniform ink transfer compared with chrome-plated rollers, delivering sharp, clean and consistent water-based ink printing on corrugated surfaces. Whether you need simple text, barcode printing for logistics cartons, or delicate pattern graphics for retail fruit boxes and food packaging, the printing unit can meet diverse custom requirements. Every printing unit is fitted with independent digital phase adjustment. Operators fine-tune color registration on the touchscreen without mechanical handwheel adjustment, which saves massive setup time during job switching.

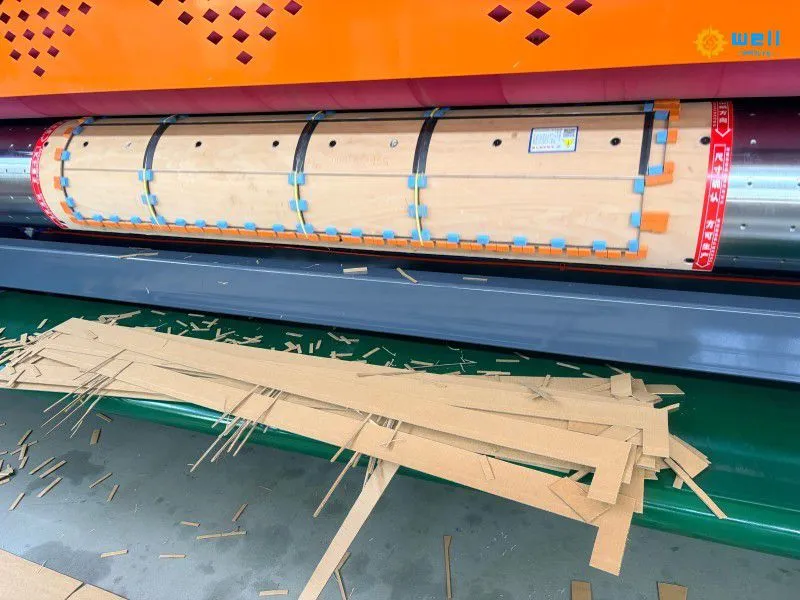

Following the printing section, the integrated creasing and slotting unit shapes the carton blank accurately. Precision creasing wheels create neat score lines to prevent cardboard cracking during box folding. Slotting knives cut the carton slots with precise dimension control. After slotting, the rotary die cutting unit finishes contour cutting, punching and waste stripping in one step. Electric fine-tuning of die-cut pressure ensures clean cutting edges without burrs or crushed corrugated flutes. Finished carton blanks come out ready for folding and gluing, removing the need for separate offline die-cutting processes and extra material handling. All these functions work inline, shortening the whole production flow and cutting labor dependency.

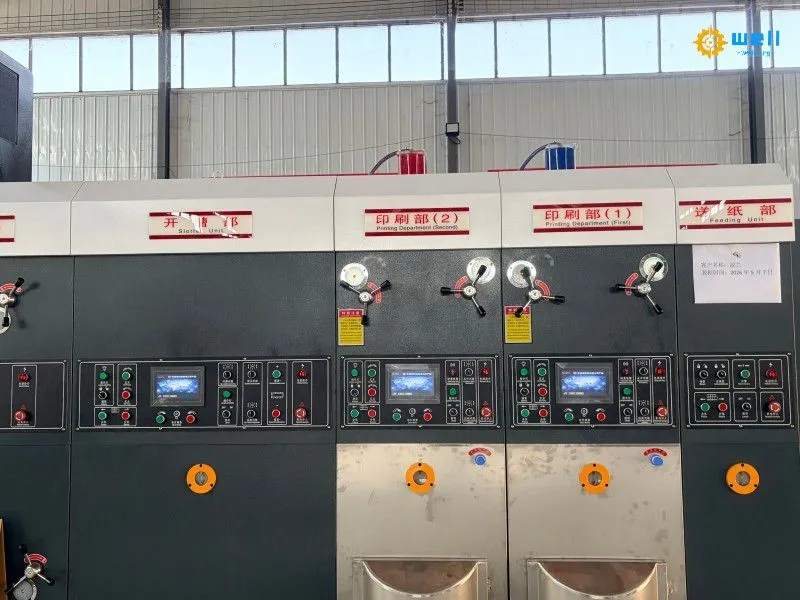

The whole machine adopts intelligent PLC control system paired with large human-machine touch screen. All key parameters including feeding speed, printing phase, ink pressure, creasing depth, slotting size and die-cutting pressure can be digitally set and saved. The system can store up to 999 sets of product recipes. When switching between different carton sizes and printing patterns, operators can recall saved orders with one click. Job changeover time is reduced dramatically, which is perfect for factories handling frequent small-batch and mixed orders. The transmission system uses carburized alloy gears with circulating spray lubrication. Heavy-duty gear structure maintains stable running accuracy under long-time continuous operation, lowers noise and extends machine service life.

We fully consider daily maintenance and operational safety in the mechanical design. Openable protective covers allow convenient access for cleaning ink trays, replacing die cutting plates and inspecting rollers. Safety interlock devices stop machine operation automatically once the protective door is opened, protecting operators from accidental injury. The machine meets CE standards. It is widely applicable for producing e-commerce shipping boxes, fruit cartons, food packaging boxes, industrial component packing cases and various custom printed corrugated cartons.

Our service package covers the whole lifecycle of the lead edge printer slotter die cutter. Before shipment, every machine goes through strict running inspection and test cutting. We provide overseas installation guidance, on-site operator training and remote technical support. Our engineering team helps your workers master machine operation, daily maintenance and simple troubleshooting quickly. The standard 12-month warranty covers core components. Fast spare parts supply minimizes downtime if replacement is needed.

If your carton factory struggles with unstable feeding, high reject rate and slow job changeover, our lead edge printer slotter die cutter machine is your reliable solution. It balances high speed, stable precision and low operating cost, helping packaging manufacturers enhance product competitiveness and capture more orders in the tough packaging market. Contact us today to get detailed specifications, quotation and production test videos.
