Carton Partition Assembler | Automatic Partition Assembly Machine

For corrugated packaging plants, partition assembly has long been one of the most troublesome bottlenecks in production. Building interlocking cardboard grids by hand is repetitive, slow, and vulnerable to inconsistent quality. As order volumes rise and labor costs keep climbing, more converters are switching to an automatic carton partition assembler to standardize this inner packaging process. This machine takes pre-slotted vertical and horizontal cardboard strips, feeds, aligns and interlocks them automatically, and outputs finished partition grids ready for packing glass, bottles, fruit, ceramics and electronic components. It is not just a labor-saving upgrade; it is a practical investment to stabilize throughput, cut reject rates and support sustainable packaging workflows.

Manual partition assembly looks simple but carries hidden risks. Workers spend hours slotting and crossing cardboard sheets one by one. Output fluctuates heavily with fatigue, shift changes and staff turnover. Misaligned slots, loose grids and uneven cell sizes appear frequently. Poorly assembled partitions cannot hold products firmly during transit, leading to collision damage and customer complaints. For high-volume packaging lines, assigning four to six operators only to make inner dividers creates a rigid cost structure. When seasonal orders spike, factories struggle to recruit temporary staff fast enough to meet deadlines. Many packaging manufacturers have realized that this low-value, repetitive station is the ideal starting point for automation.

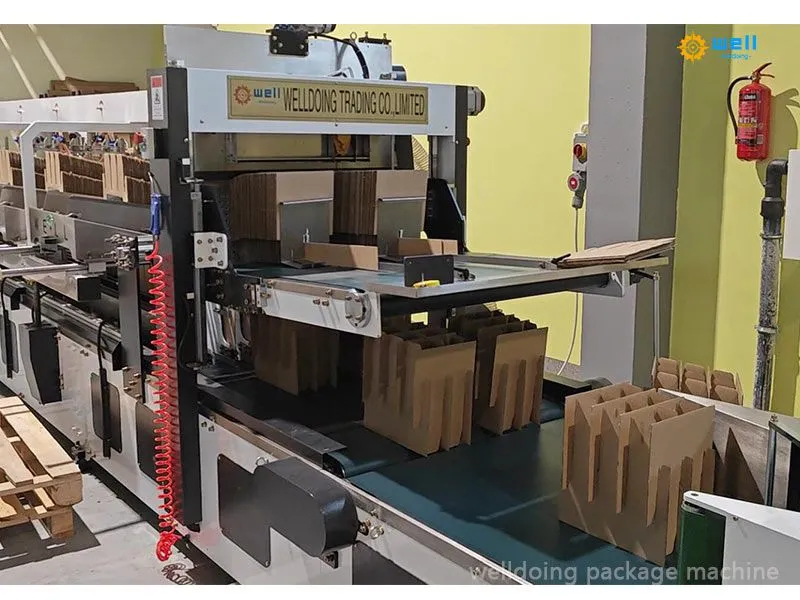

An automatic carton partition assembler streamlines the whole grid-forming sequence in one compact unit. The workflow starts with vacuum feeding stacks of pre-slotted corrugated boards. Separate magazines supply horizontal and vertical strips. Servo positioning systems move boards into precise alignment, then drive the interlocking insertion action to form neat multi-cell grids. Sensors monitor paper feeding in real time; if jamming, missing sheets or misfeeding occurs, the machine triggers an alarm and stops automatically to avoid damaged parts and tool wear. Finished partitions stack neatly at the discharge station for direct packing or storage. Most modern models use PLC and touchscreen control. Operators can save different size recipes and recall them with one click, which drastically shortens changeover time between different partition sizes and grid layouts.

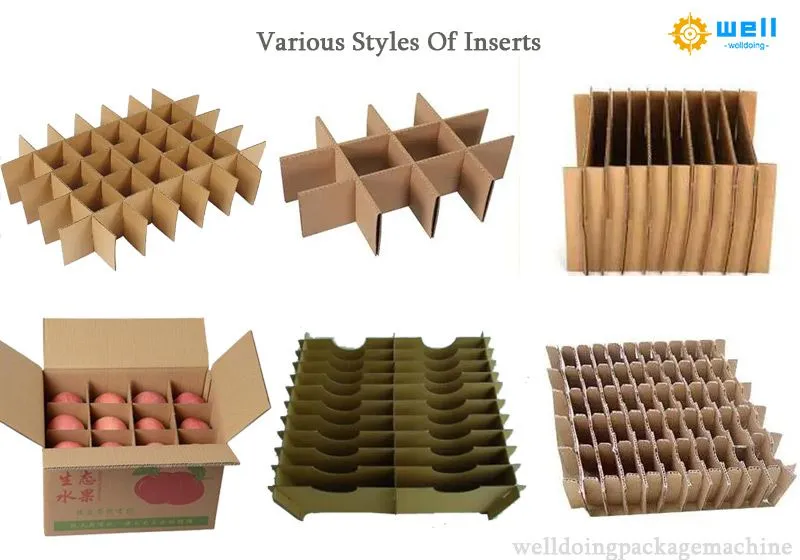

Precision and flexibility are two core strengths of this equipment. CNC electric spacing adjustment lets users modify cell width, partition height and grid pitch without manual measuring and bolt adjustment. It supports different corrugated grades, including single-wall, double-wall and greyboard within the adjustable range. Whether you need 2×3 bottle grids for wine cases, dense small compartments for cosmetic jars, or larger cells for fruit trays, the machine adapts quickly. The welded heavy steel frame reduces vibration during continuous high-speed running, maintaining stable accuracy for long shifts. Many versions offer dual-station output to boost capacity for factories running large recurring orders for beverage and glass packaging.

The economic benefits are clear for packaging converters. One automatic partition assembler can replace four to six workers on the partition station. Labor savings cover the equipment investment within a reasonable production cycle. Unlike manual output that drops in the afternoon or night shift, the machine maintains consistent speed for extended runs. Stable cycle times help production managers schedule orders accurately and shorten lead times. Uniform interlocking structure reduces scrap from crooked partitions and lowers product damage claims from end buyers. Less rework means less wasted cardboard and better material utilization. For factories facing labor shortages, the machine removes reliance on hard-to-hire manual workers for this monotonous task and reallocates staff to skilled roles such as die-cutting, quality inspection and customer service.

This equipment serves a wide range of end markets. Glass and ceramic packaging is a classic application: tight, uniform cells prevent fragile items from knocking together during shipping. Wine, beer and beverage cartons depend on corrugated partitions to separate bottles and avoid breakage. Fresh fruit packers use partitions to stop bruising between apples and pears. Electronic parts, cosmetics, pharmaceutical containers and small hardware also rely on these protective grids. Since the partitions are 100% paper-based, they fit perfectly into recyclable, mono-material packaging strategies. Brands moving away from plastic inserts and foam cushioning find automatic partition production a cost-effective way to hit sustainability targets without sacrificing protection performance.

When selecting a carton partition assembler, buyers should match machine specifications to their product mix. First, confirm the working range: maximum and minimum board dimensions, adjustable partition height and supported grid layouts. Factories handling frequent size changes should prioritize models with servo electric adjustment and recipe storage. Reliable feeding performance matters too; vacuum suction feeders handle thin and warped cardboard better than friction feed systems. Safety features such as jam protection, emergency stop and fault alerts reduce downtime. It is also wise to check after-sales support, spare part availability and training packages. A low-priced machine with poor service support can turn into a bottleneck if it breaks down in peak season.

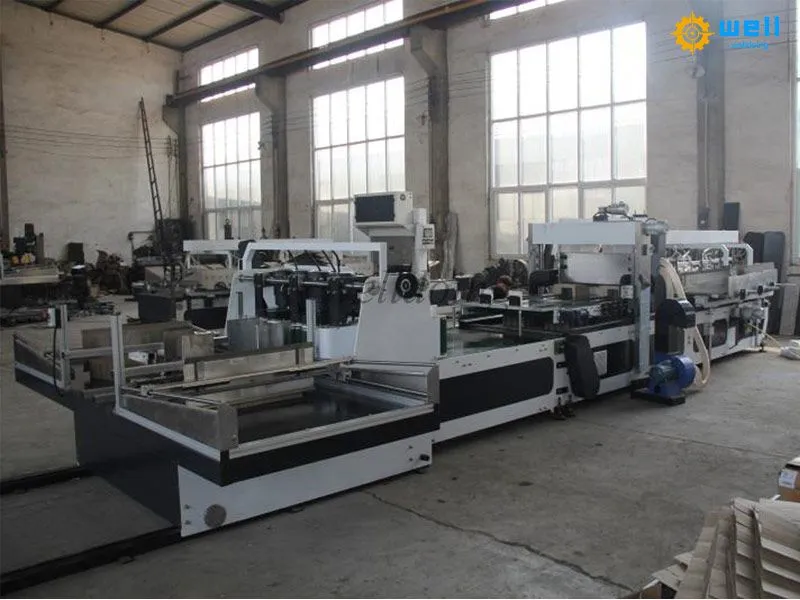

Many packaging lines combine this partition assembler with printer slotters, folder gluers and stackers to build a complete corrugated box production ecosystem. The partition machine works as a standalone unit or feeds finished grids into downstream cartoning stations. This modular design makes it suitable for small family carton shops as well as large integrated packaging plants. Small manufacturers can start with one unit to automate their partition workshop and expand later, while large factories can deploy multiple machines to keep pace with high-volume beverage and glass contracts.

Compared with alternative protective packaging, corrugated partitions produced by automatic assembly balance cost, protection and sustainability. Foam inserts and plastic trays offer cushioning but raise recycling costs and environmental scrutiny. Loose fill materials are messy and inconsistent. Pre-assembled paper grids stack efficiently, take less storage space and are fully recyclable. With an automatic partition assembler, converters can supply ready-to-use partitions to brand owners at competitive prices while meeting green packaging requirements.

In today’s packaging industry, speed, consistency and sustainability determine competitiveness. The carton partition assembler solves a long-standing manual pain point with proven automation. It removes human inconsistency, cuts labor dependency, speeds up size changeover and delivers reliable grid partitions for fragile goods. For corrugated box makers ready to upgrade their inner packaging process, this machine is more than an add-on device. It is a strategic tool to stabilize quality, control production costs and satisfy customers who demand precise, damage-free packaging at shorter lead times. If your workshop still depends on hand-assembled cardboard partitions, evaluating an automatic partition assembly machine could be the next step to lift your overall line efficiency.
